Feature:

1. The tidal gas can be exported with constant pressure, contact current and accurately adjustable flow
2. Opening ventilation, which used opening intubation without casing bag, and get little resistance when expiratory is suitable for the ventilation management of infant
3. Evident effectiveness of ARDS treatment can be shown with inserting small tube and jetting oxygen through nasal vestibule, which is safe and doesn’t cause pressure injury easily
4. Special CPAP tube for infant ventilation treatment are available
5. PEEP and humidifier volume can be adjusted accurately
6. Alarm system with sound and light when no oxygen, power failure or low airway positive pressure
7. Heated humidifier can be used for good effectiveness of humidifying
8. Inbuilt storage battery, it can be used while being charged and can be used for more than four hours after full charged

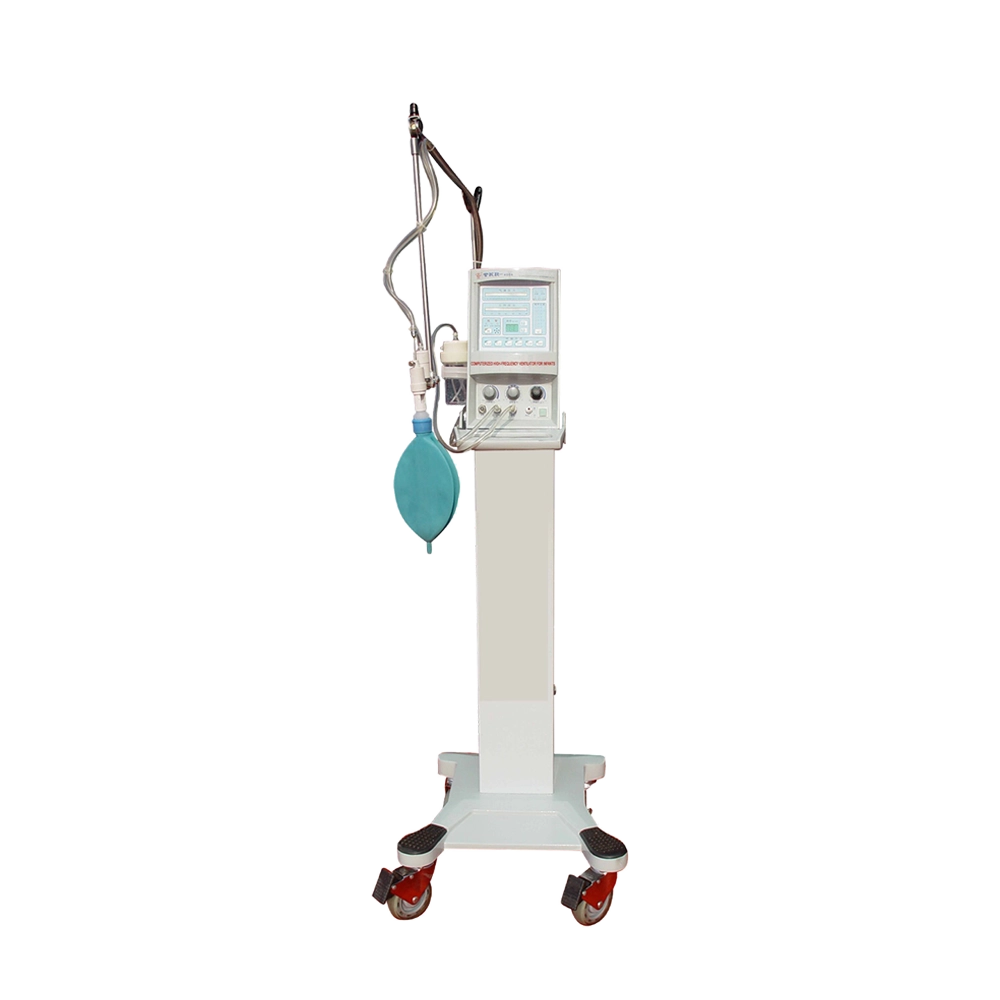

Infant Ventilator Specifications

• Frequency: 10–150 breaths/min
• I/E ratio: 1:1, 1:3, and inverse ratio
• Driving Pressure: 0–60 KPa
• Humidifying rate: ≥6 ml/h
• Process Ventilation: T = 10 min
• Pro I: T1 (150 bpm) : T2 (35 bpm) = 7:3
• Pro II: T2 (35 bpm) : T1 (150 bpm) = 7:3
• Storage Battery: 4Ah, 12V, rechargeable
• SIGH: 3 breaths/min
