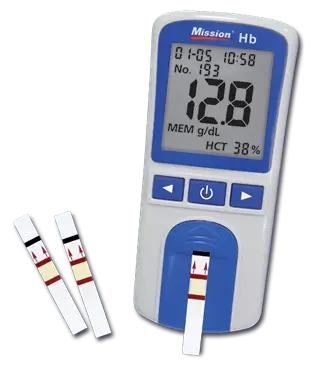

Mission Hemoglobin Hb
Performance and Value in the Palm of your Hand.
Features
Designed for POC Testing
- Portable handheld
- Large, easy-to-read LCD
- Test Device format designed to minimize contamination
Accurate
- Precise results equivalent to laboratory analyzers
- Wide Hb measurement range of 5.6 – 23.5 g/dL
- Calculated Hct range of 35 – 51%
Quick & Convenient
- Results in < 15 seconds
- Auto-calibration
- Stores up to 1,000 results
- Fast data transfer via Mini USB port
Product Specifications
| Features |
Specifications |
| Methodology |
Reflectance Photometry |
| Detection Principle |
Methemoglobin |
| Time to Results |
< 15 seconds |
| Memory |
1,000 tests with date/time and ID number |
| Specimen Volume |
10 µL |
| Specimen Type |
Capillary and Venous whole blood |
| Hb Measurement Range |
5.6–23.5 g/dL |
| Hct Range |
35–51% |
| Wavelengths |
525 nm |
| PC Interface |
Mini USB Port |
| Calibration |
Automatic |
| Hb Within Run Precision CV |
≤ 3% |
| Hb Total Precision CV |
≤ 3% |
| Accuracy |
Venous Blood: Y=0.988X+0.060, R²=0.988
Capillary Blood: Y=0.980X+0.193, R²=0.988
|
| Operating Conditions |
10–40 °C (50–104 °F); ≤90% RH |
| Meter Storage Conditions |
0–50 °C (32–122 °F); ≤90% RH |
| Strip/Device Storage Conditions |
2–30 °C (36–86 °F); ≤85% RH |
| Strip/Device Shelf Life |
2 years unopened canister; 3 months opened canister |
| Power Source |
4×AAA (1.5 V) or AC adapter (Mini USB, 5 V DC, 50 mA) |
| Battery Life |
2,700 tests or 360 hours |
| Automatic Shut Off |
8 minutes |
| Meter Dimensions |
137 × 79 × 26 mm (5.4″ × 3.11″ × 1.02″) |
| LCD Dimensions |
50 × 50 mm (1.97″ × 1.97″) |
Description
1) Insert Test Device or Strip
2) Apply 10 µL specimen with capillary tube
Lancing Device & Lancets
- 6 adjustable depth settings for greater comfort
Safety Lancet I
- Needles automatically retract to ensure patient safety
- For single use only
- Encased sterile needles eliminate accidental injuries and contamination
Control Solution
- 3 control solutions available: Level 0, Level 1, and Level 2
- Use control solution to confirm that the meter is working properly
Control Strips & Devices
- Use control strips and devices to monitor meter performance
Capillary Transfer Tubes
- 10 µL plastic capillary transfer tubes ensure a sufficient sample has been obtained
Adapter Kit
- Power Adapter allows user to power meter without batteries
- 4 different plugs available for use in different countries
