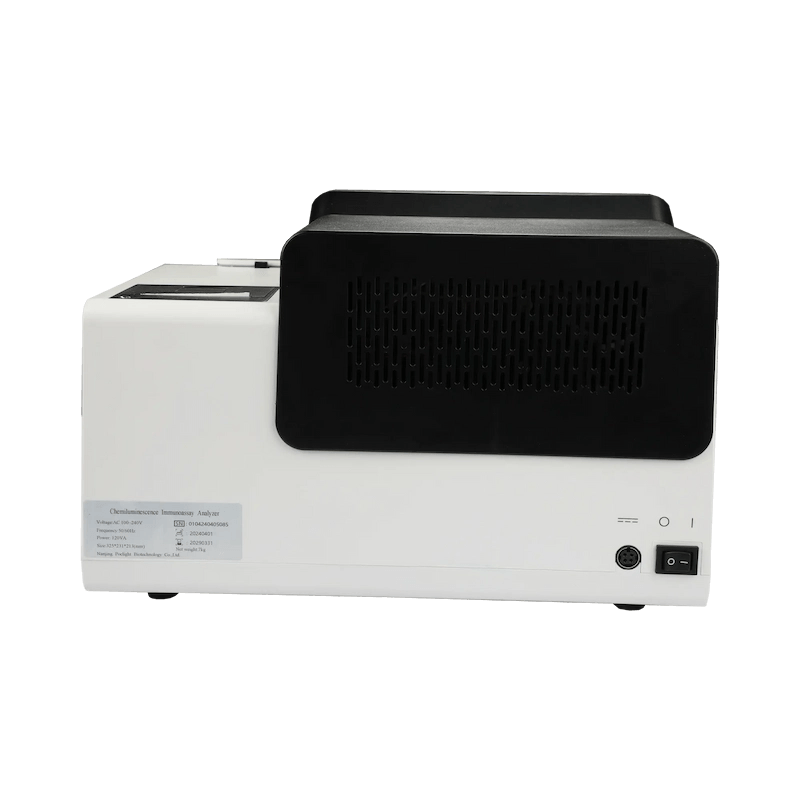

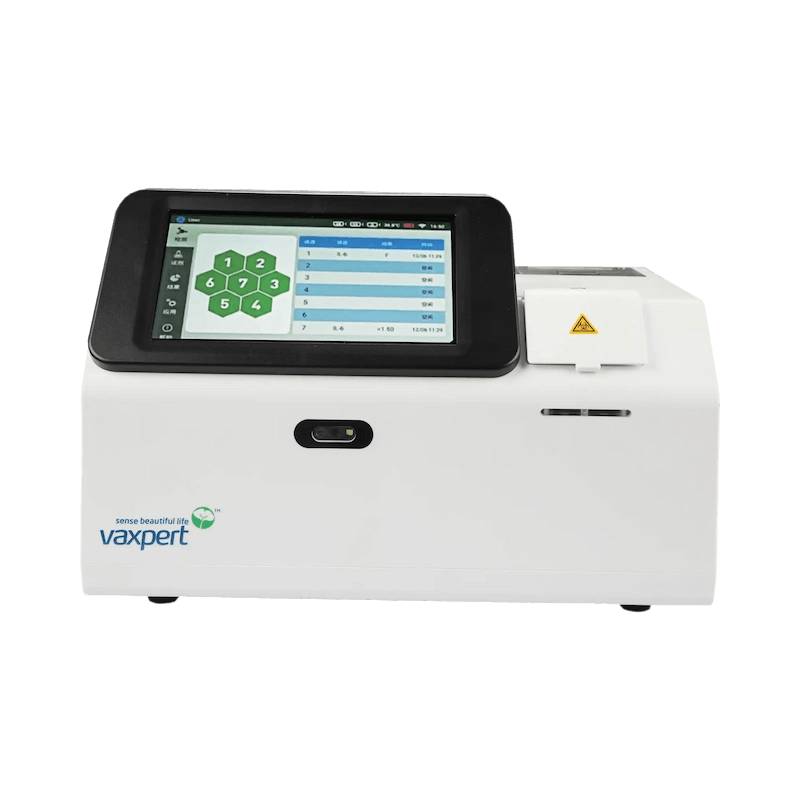

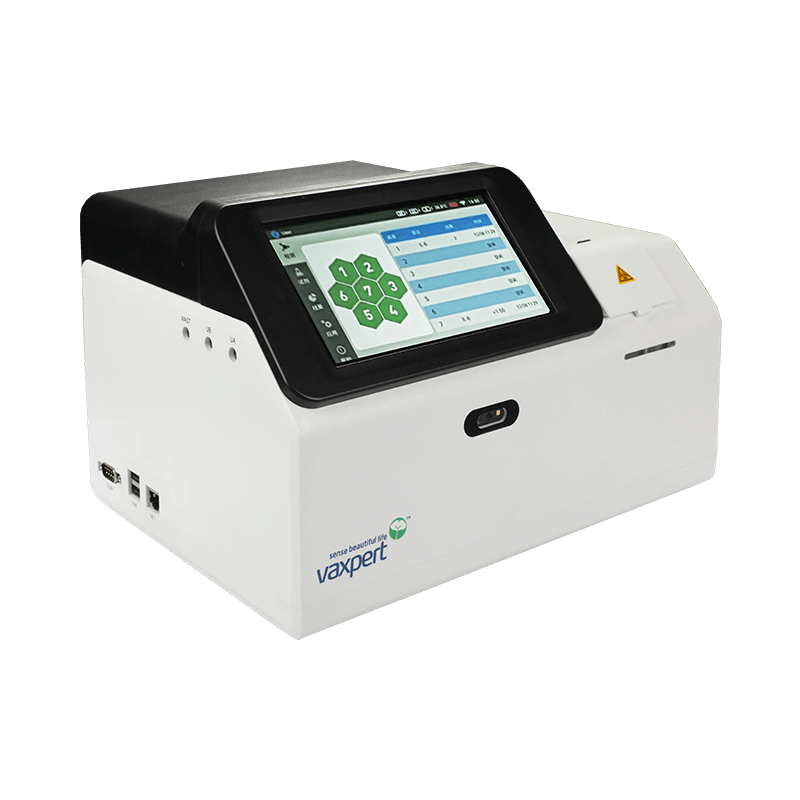

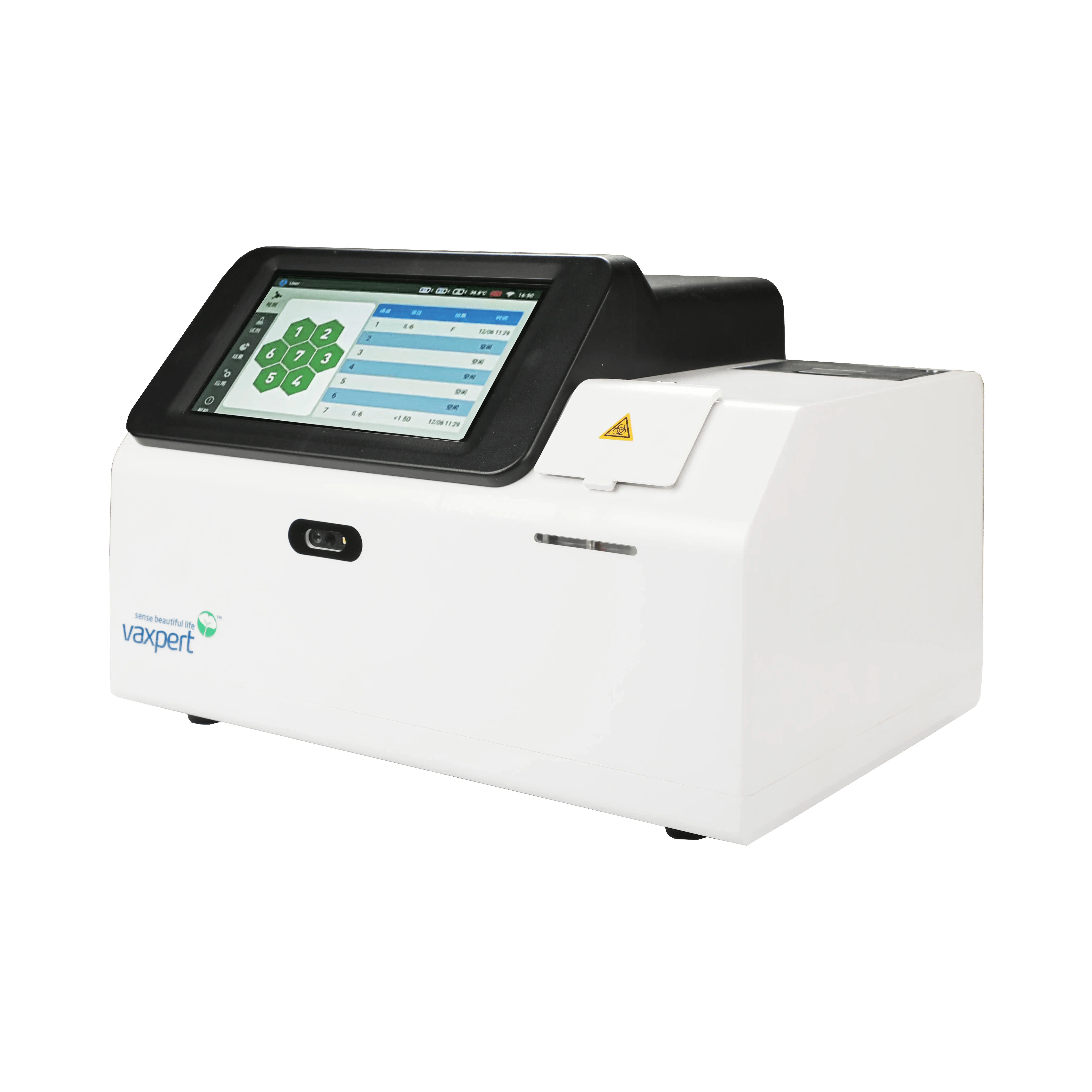

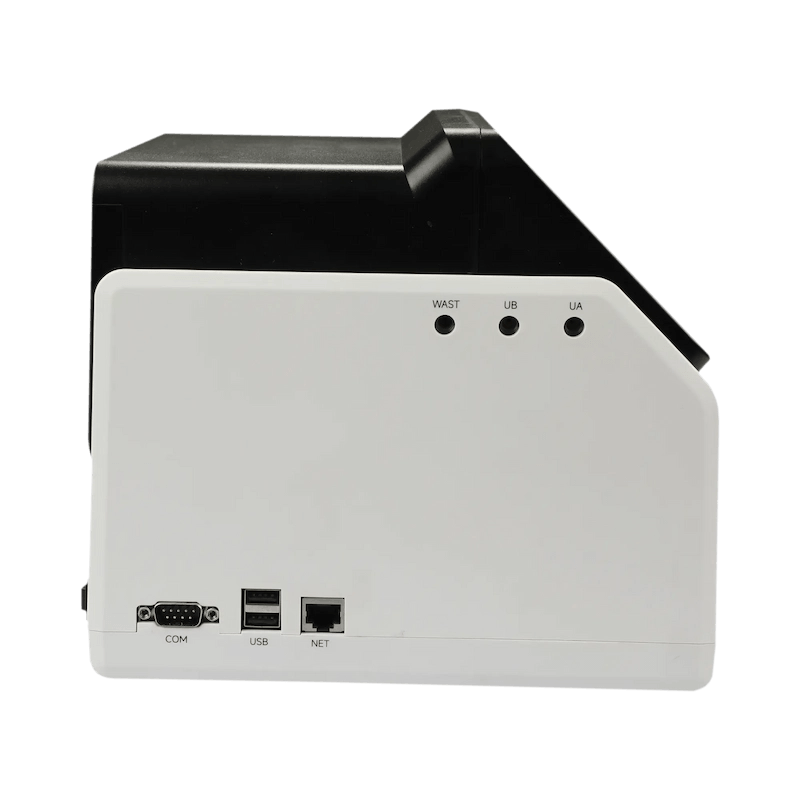

Chemiluminescence Immunoassay Analyzer (V5000)

Chemiluminescence Immunoassay Analyzer (V5000)

Dry Micro Chemiluminescence Immunoassay Analyzer (V5000) adopts acridin ester direct chemiluminescence method and is used together with supporting reagents for qualitative or quantitative testing of analytes in human serum, plasma, whole blood, urine, cerebrospinal fluid and body fluid samples in clinical practice, including hormone items, cardiac disease items, protein peptide tests, immune function items, other enzyme items, tumor items, sugar and metabolite determination items, coagulation items, calcitoninogen, heparin binding protein.

Download Catelog (PDF)

Description

Technical Specifications
Principle CRET Homogeneous CLIA
Sample Type 9 sample types customizable (e.g.: Serum, plasma, whole blood, urine, etc.)
Screen Size 8.1 inch touch screen
Power Supply 100–240V AC
Operating System Android
Weight 3.00 KG
Dimension 325 × 231 × 213 mm
Testing Speed 255 tests/hour
Item Per Card Multiple items per card supported
Data Storage Volume 10,000 results
Language Interface Chinese, English (customized)
Printer Built-in thermal printer, can connect to external printer
Reagent Card Code Bar code, QR code (customized)
Reagent Type ID card
